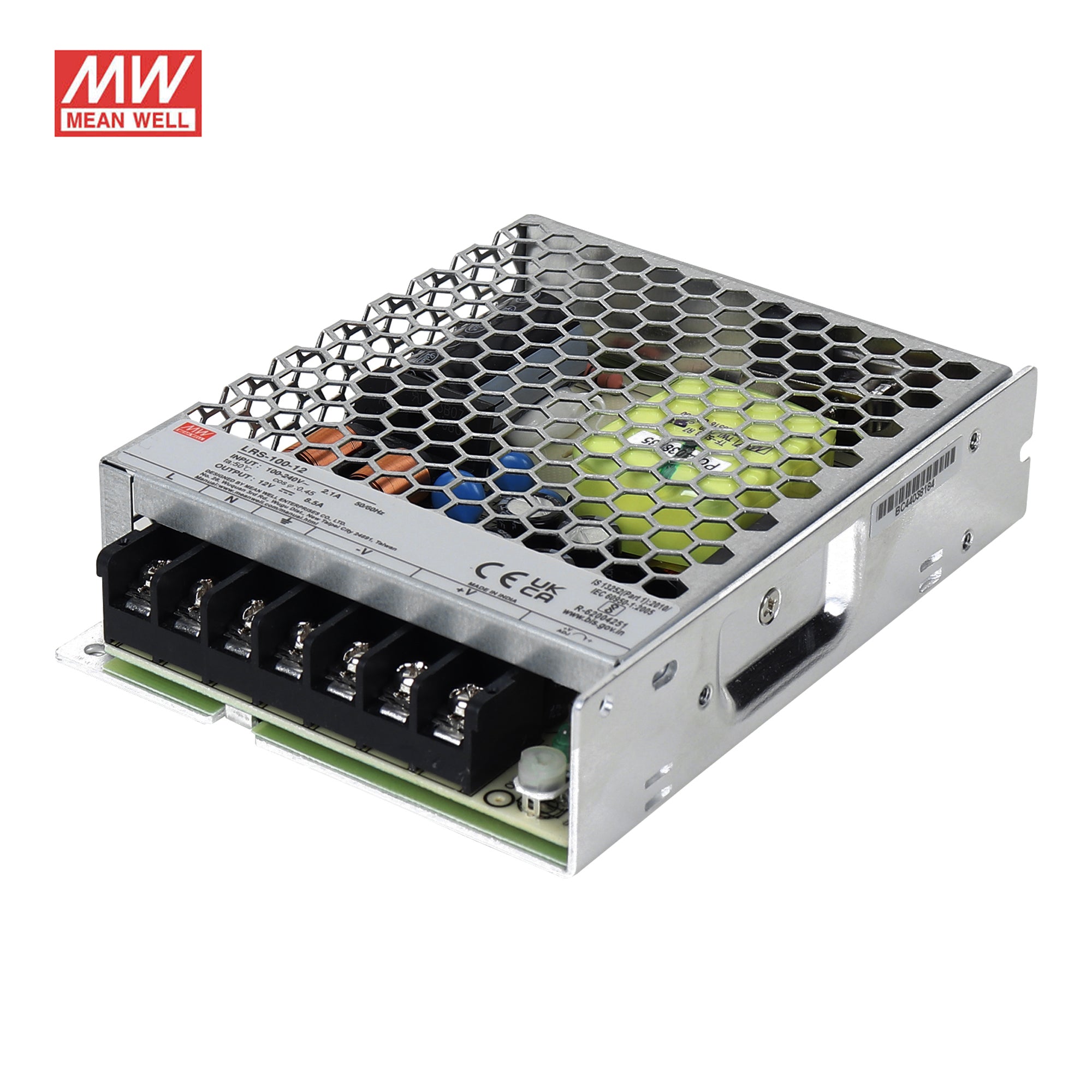

LRS-100-12– 12V 8.5A 102W MeanWell SMPS Metal Power Supply

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 91%, the design of metallic mesh case enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G anti-vibration capability;

Features/Specs:

• Manufacturer Part No: LRS-100-12
• Manufacturer: Mean Well
• Series: LRS-100
• Technology: AC/DC
• Power Format: Box Type – Enclosed
• Input Voltage Range: 100 ~ 240VAC
• Output Voltage: 12VDC
• Output Current: 8.5A
• Output Power: 102 Watts

Applications:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment's or apparatus
• Household appliances

Package includes:

• 1 x LRS-100-12– 12V 8.5A 102W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from actual product.
