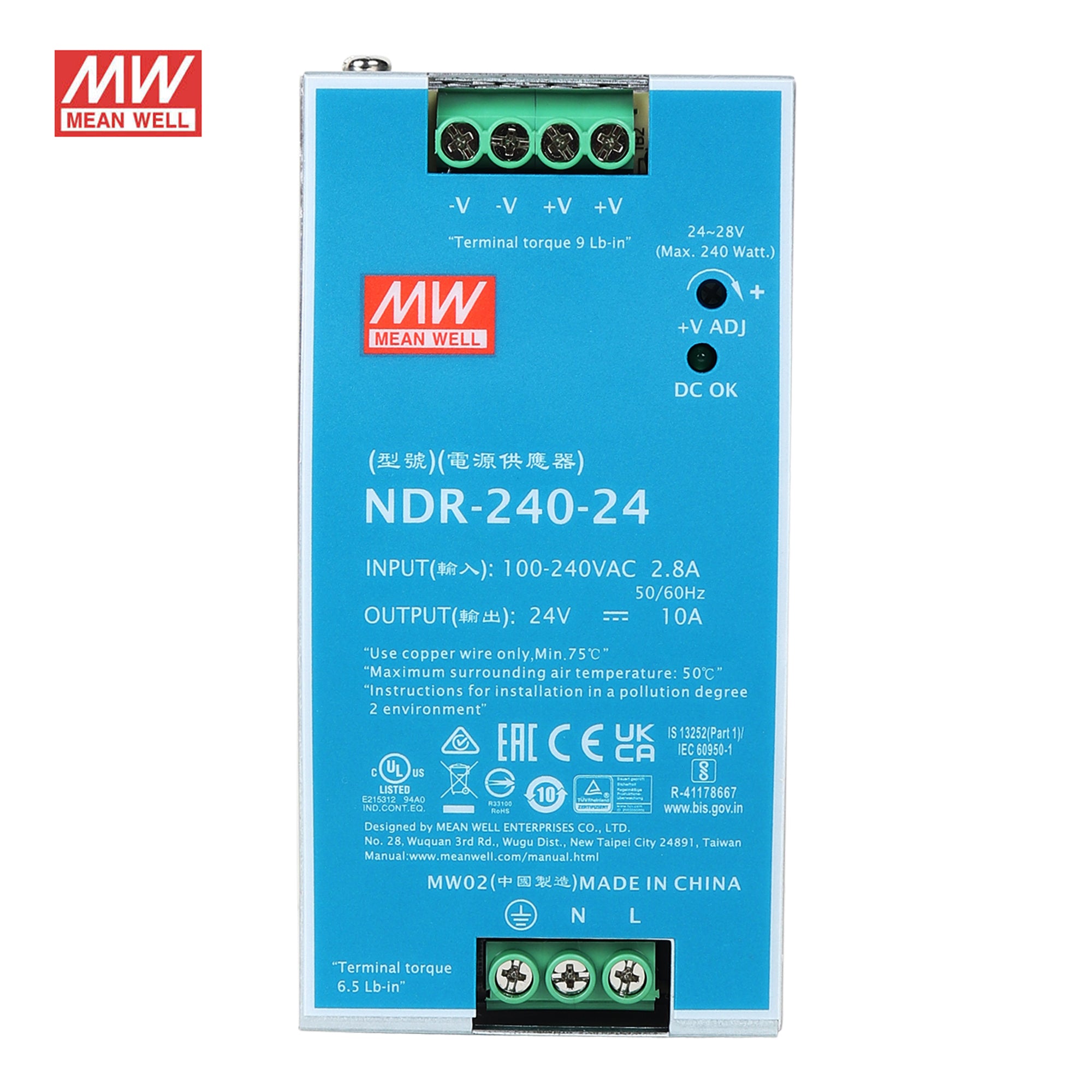

NDR-240-24 – 24V 10A 240W MeanWell SMPS Metal Power Supply-DIN RAIL MOUNT

NDR-240-24 is a NDR-240 series one economical slim 240W DIN rail power supply, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. Body is designed 63mm in width, which allows space saving inside the cabinets. It is designed with metal housing that enhances the unit’s power dissipation. lt is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. It includes short circuit, overload, over voltage over temperature protection.

Features/Specs:

• Manufacturer Part No: NDR-240-24
• Manufacturer: MEAN WELL
• Series: NDR-240
• Product: Switching Supplies
• Input Type: 1-Phase / Single Phase
• Input Voltage Range:100VAC to 240VAC
• Frequency: 50/60Hz
• Number of Outputs: 1 Output
• Output Voltage: 24VDC
• Output Current: 10A
• Output Power: 240 W
• Electrical Connection: Terminal Block
• Operating Temperature Range: -20 ~ 70°C
• Mounting Style: DIN Rail Mount

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package Includes:

• 1 x NDR-240-24 – 24V 10A 240W MeanWell SMPS Metal Power Supply-DIN RAIL MOUNT

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
