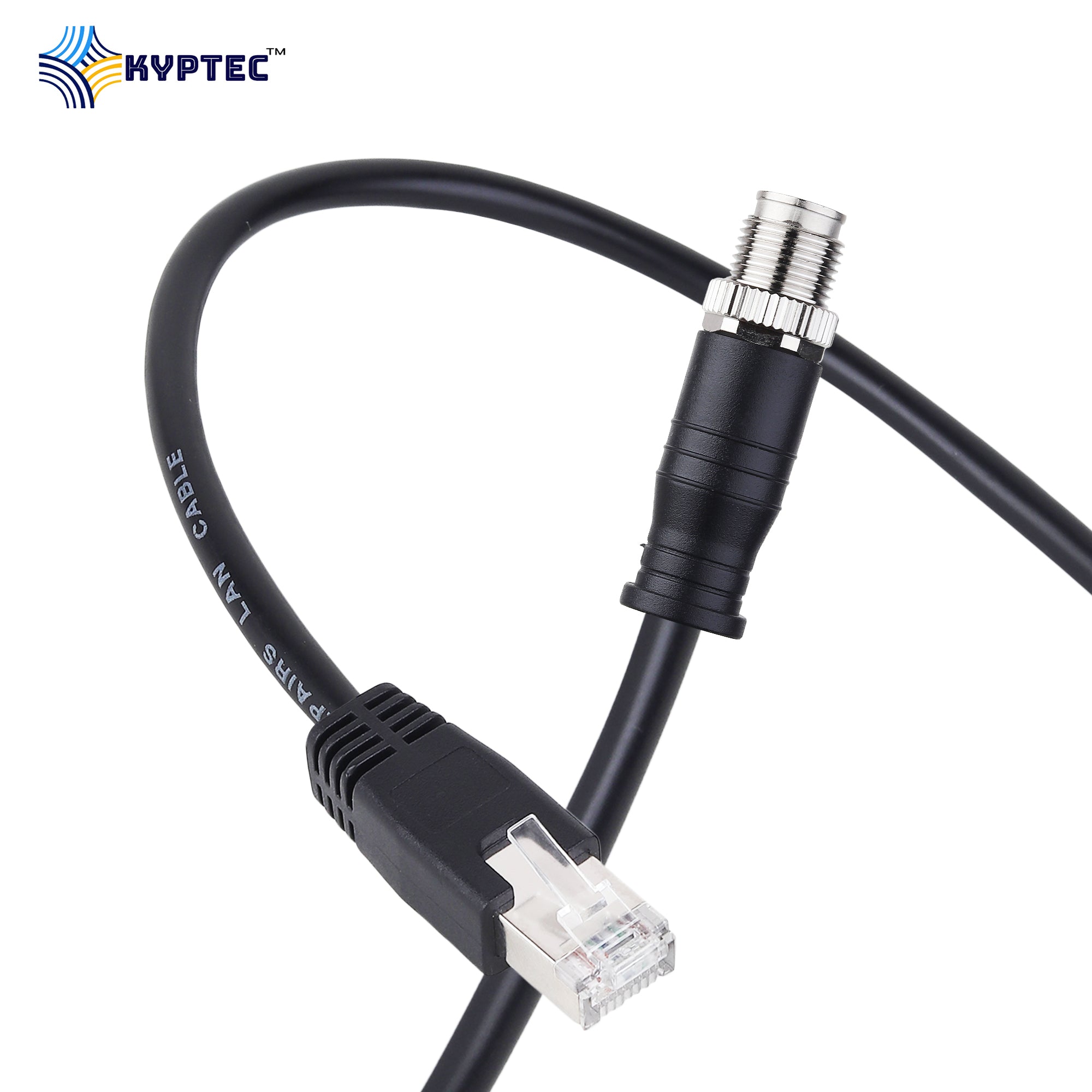

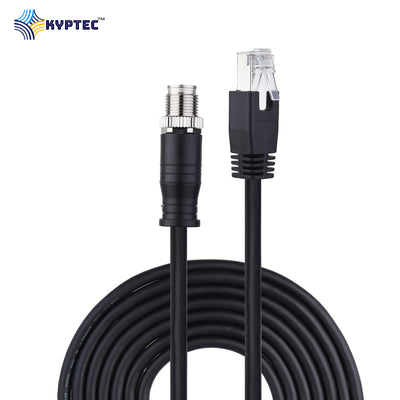

PRODUCT: M12 8 Position X-Coded Male to RJ45 Ethernet Male CAT-6 Shielded Cable. These Industrial Ethernet cables are suitable for fast data transmission up to 10 Gbps in industrial environments. The plugs have a high degree of robustness and ensure stable data transmission.

With high degree of mechanical and electrical stability, KYPTEC M12 X Coded Cables provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications.

Each cable we produce has been rigorously tested and is compatible with machines from a variety of major brand suppliers. We are committed to all the products are qualified and high-quality.

Applications:

• Industrial/Outdoor Automation Applications.
• Machine Vision Applications & suitable with Wide range of Machine Vision Industrial cameras in the market.
• security and video surveillance systems, production and manufacturing, renewable energy or similar use etc.

Key Features:

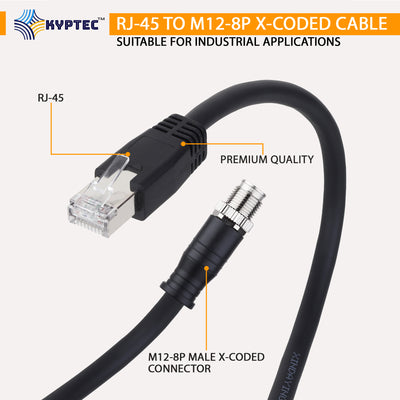

• Cable Assembly Type : M12 8 Pins X-Coded to RJ45
• Cable Type : CAT-6
• Number of Positions : 8
• Cable Length Options : 2 Meter / 3 Meter / 5 Meter, Other Cable length on request.
• Plug Side A : Male M12 8-Pin X-coded, molded
• Plug Side B : Male RJ-45 plug shielded, molded
• Pin Out : X-coded
• Cable Specification : Highly flexible, PVC Cable, 26 AWG,
• Cable Color : Black
• Connector Orientation (End A) :  Straight
• Connector Orientation (End B) :   Straight
• Industrial Protocols  : Ethernet
• Outer Sheath : Shiny black, UV-resistant, abrasion resistant, water repellent etc,.

Package Includes:

• 1 x RJ-45 TO M12-8P X-Coded Industrial Camera Cable

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
