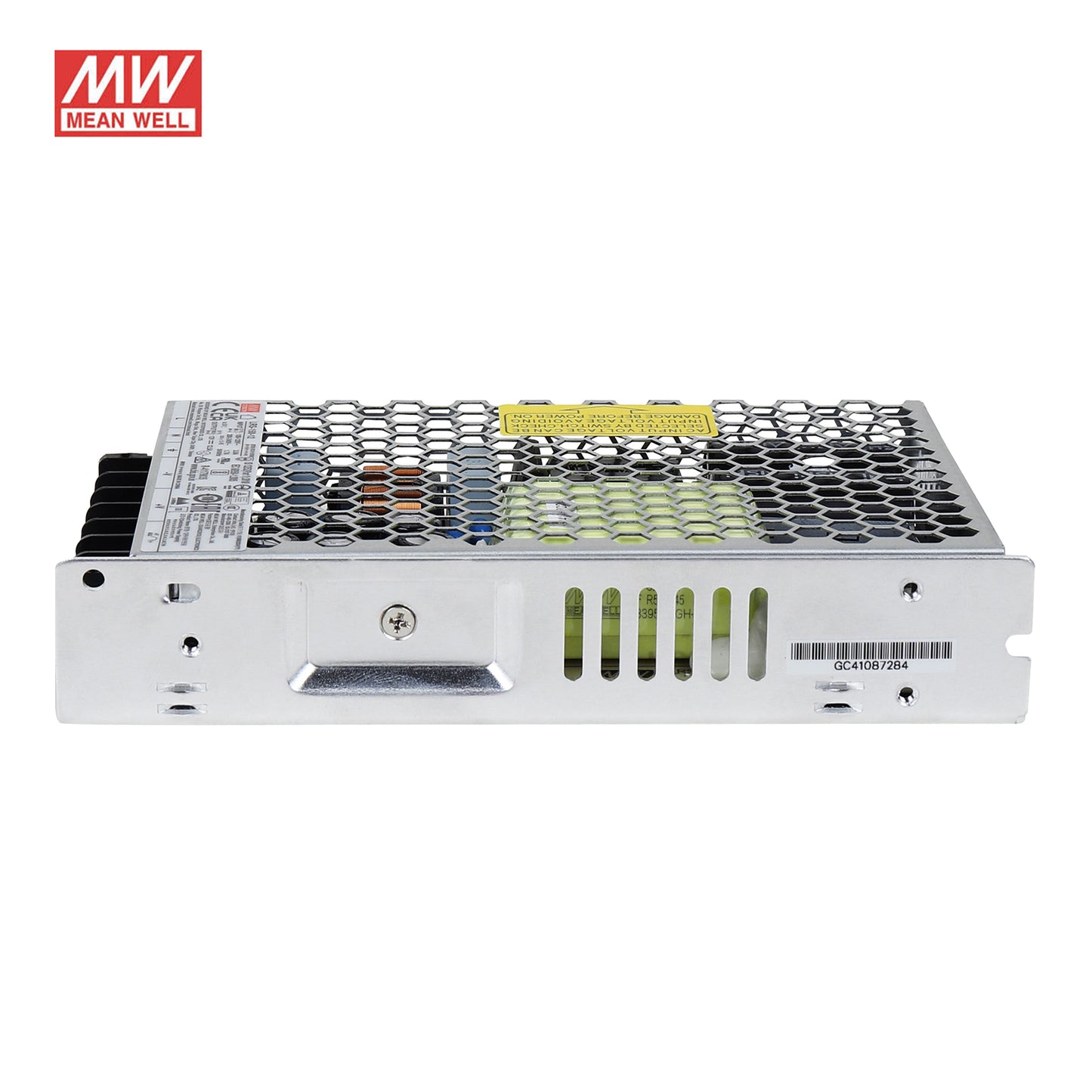

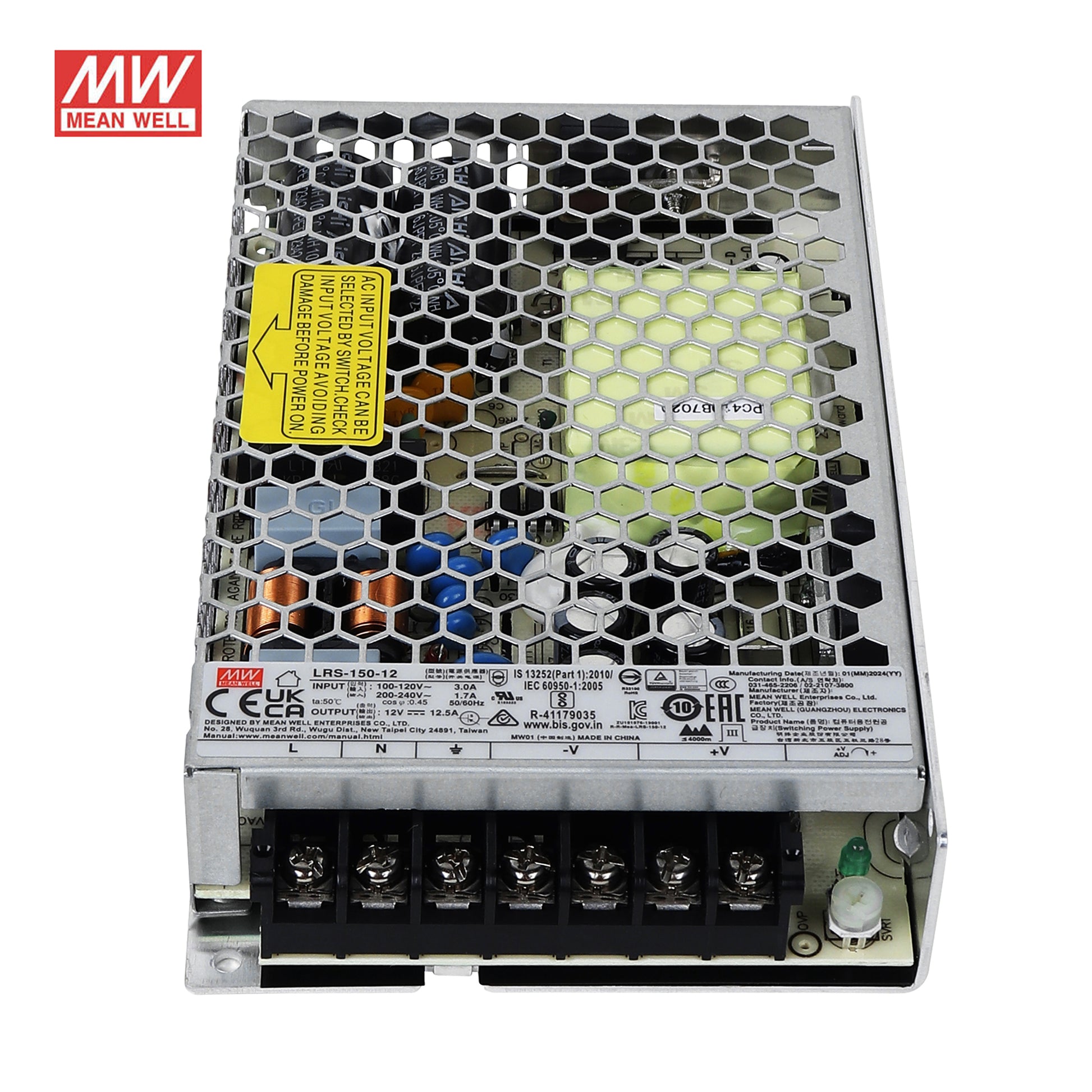

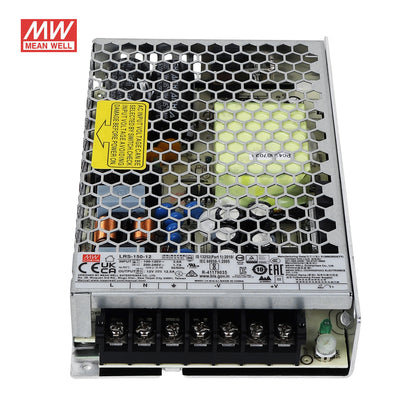

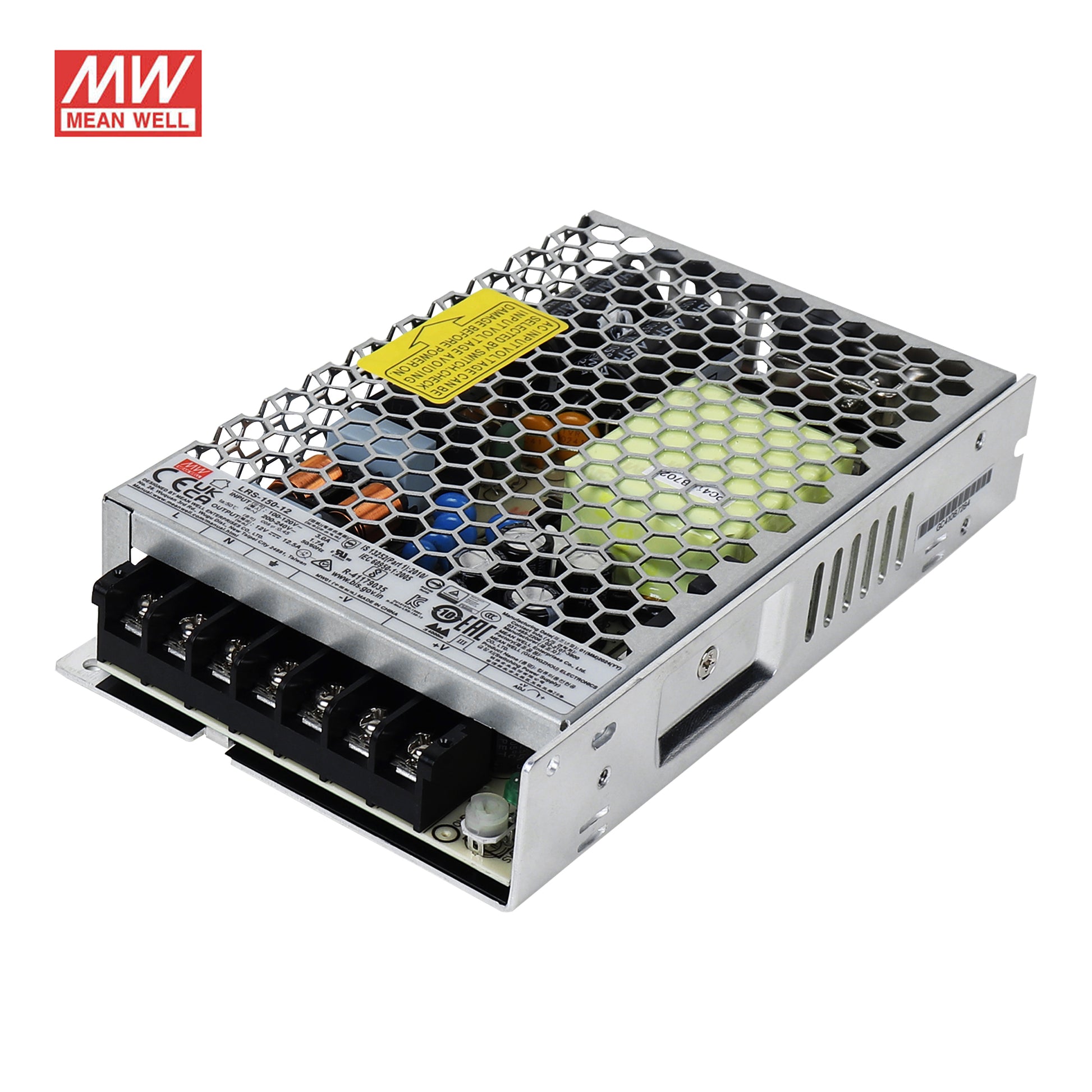

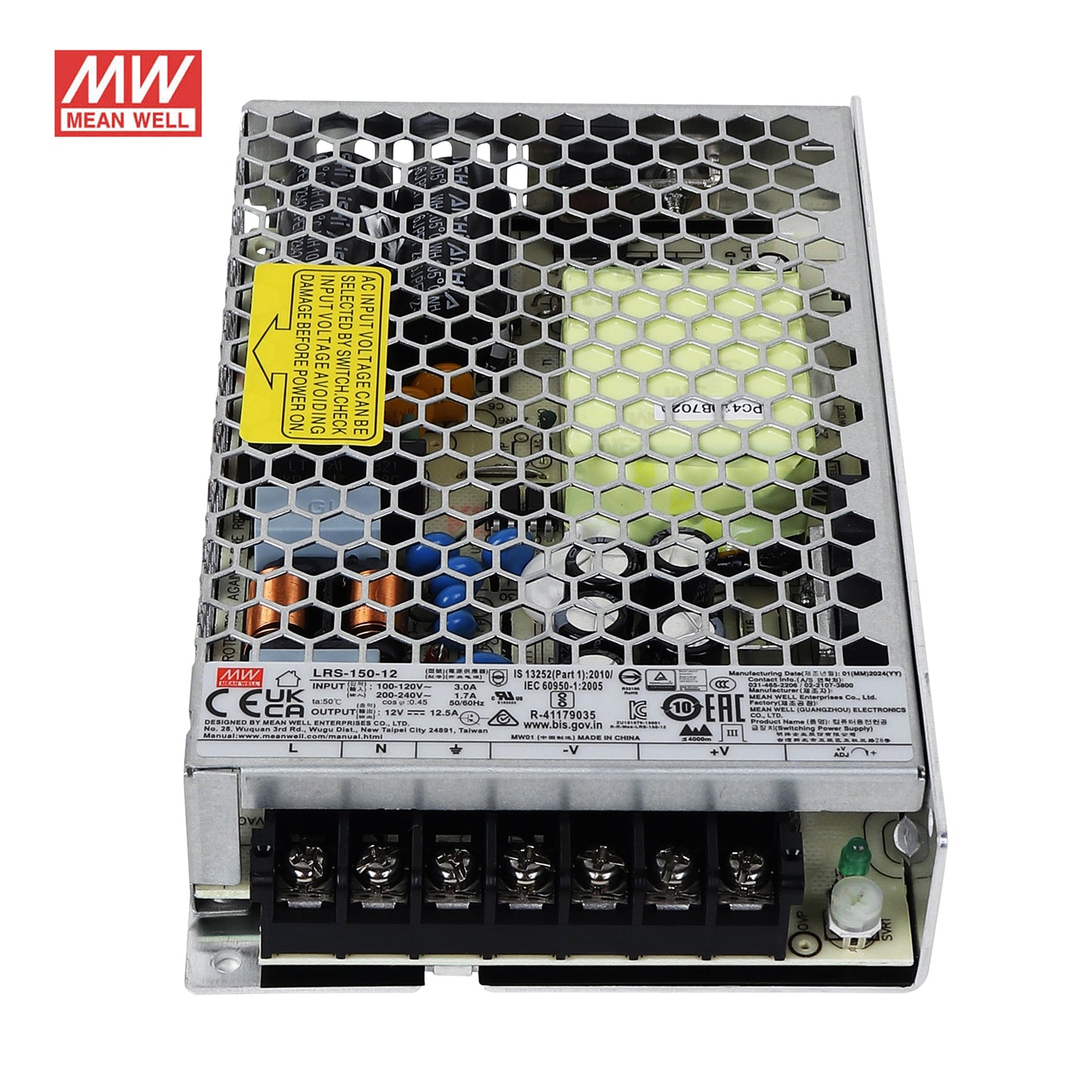

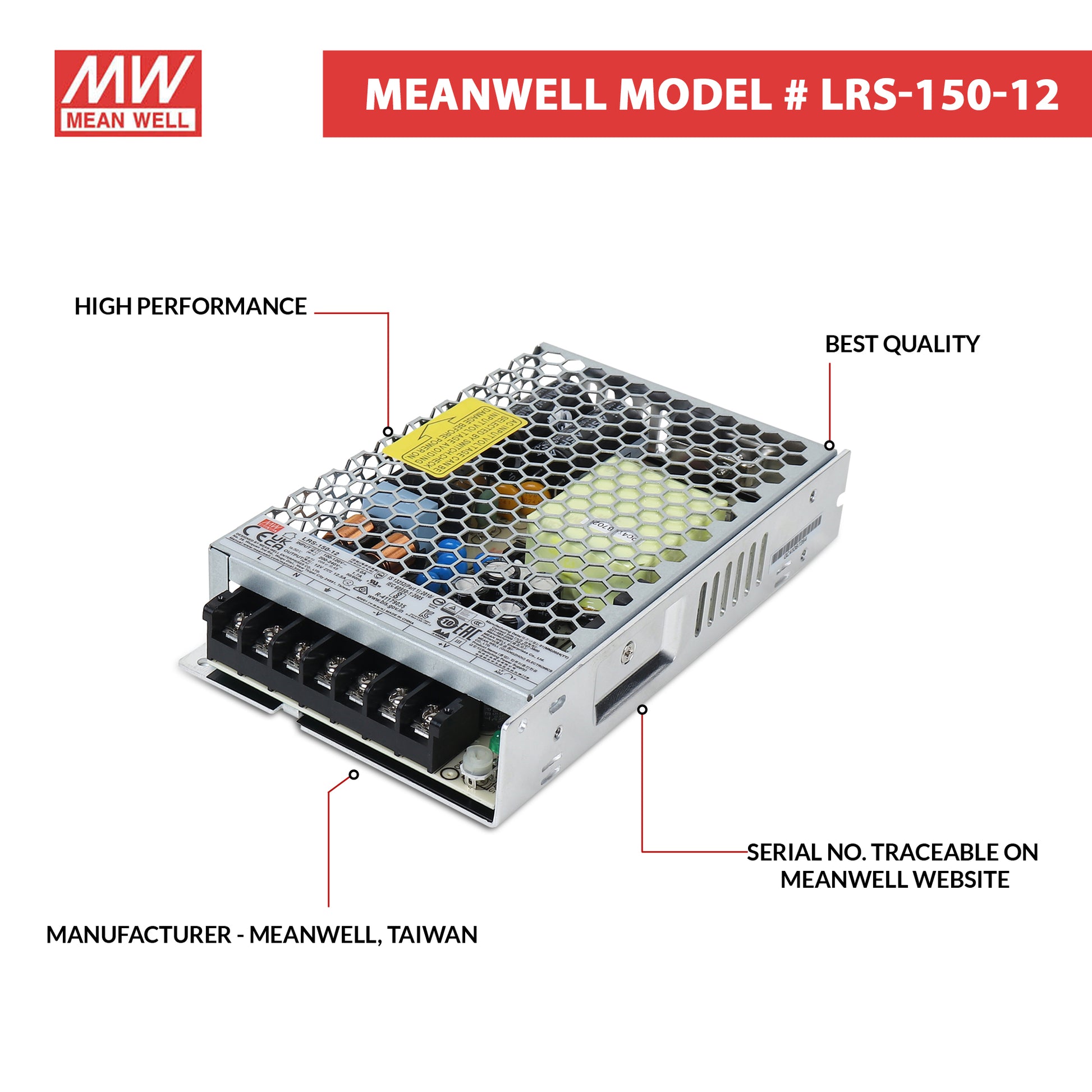

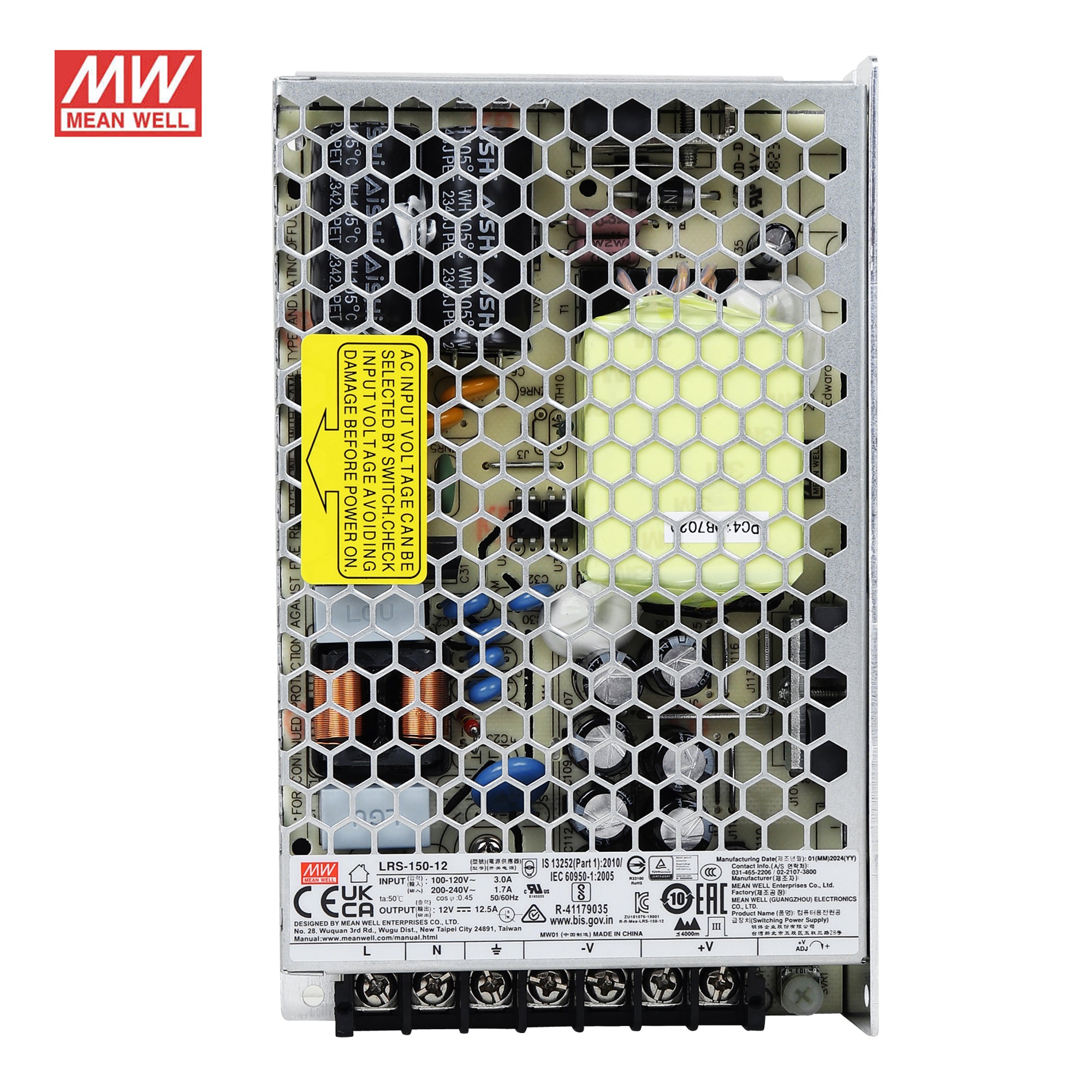

LRS-150-12 – 12V 12.5A 150W MeanWell SMPS Metal Power Supply

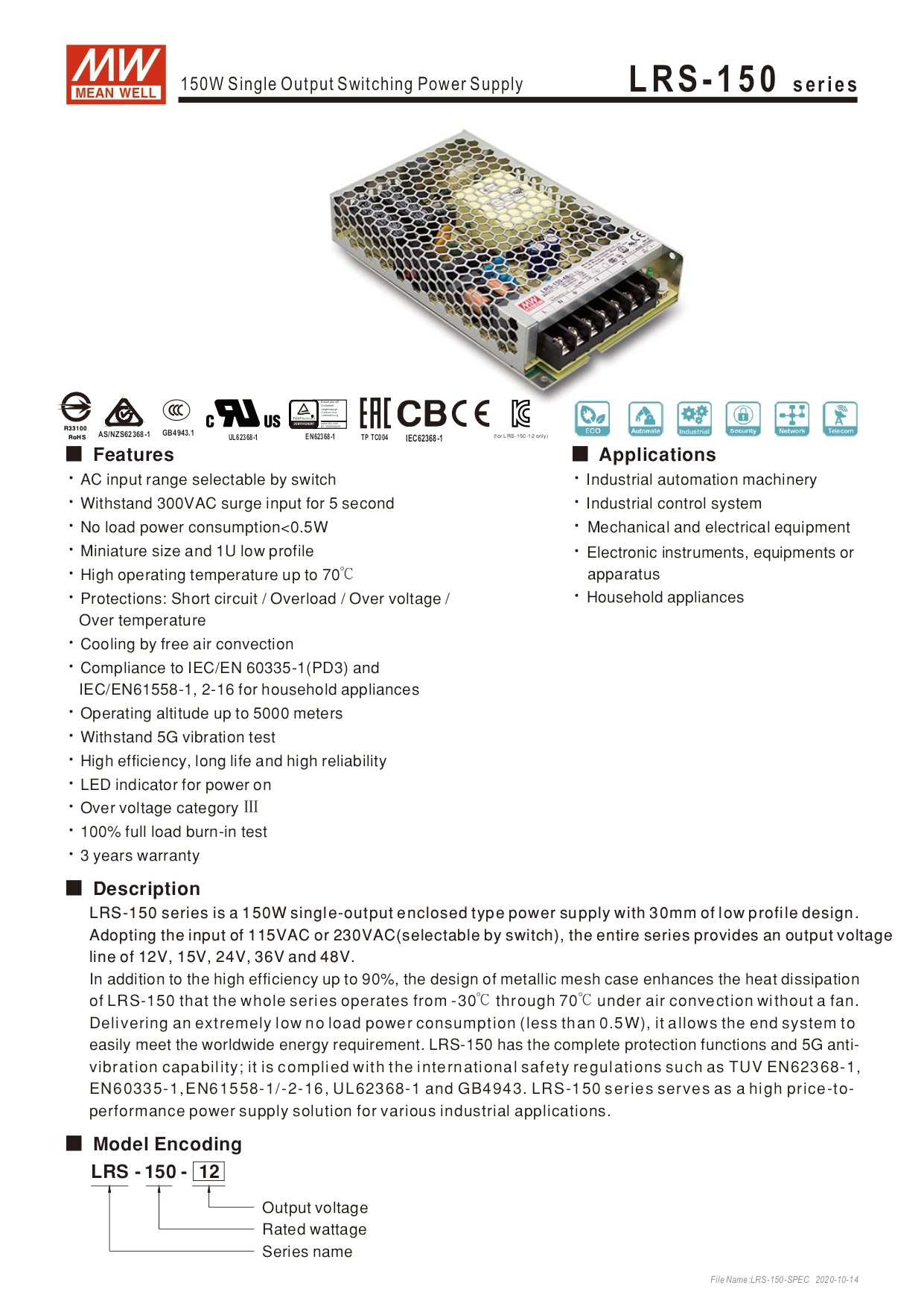

LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.

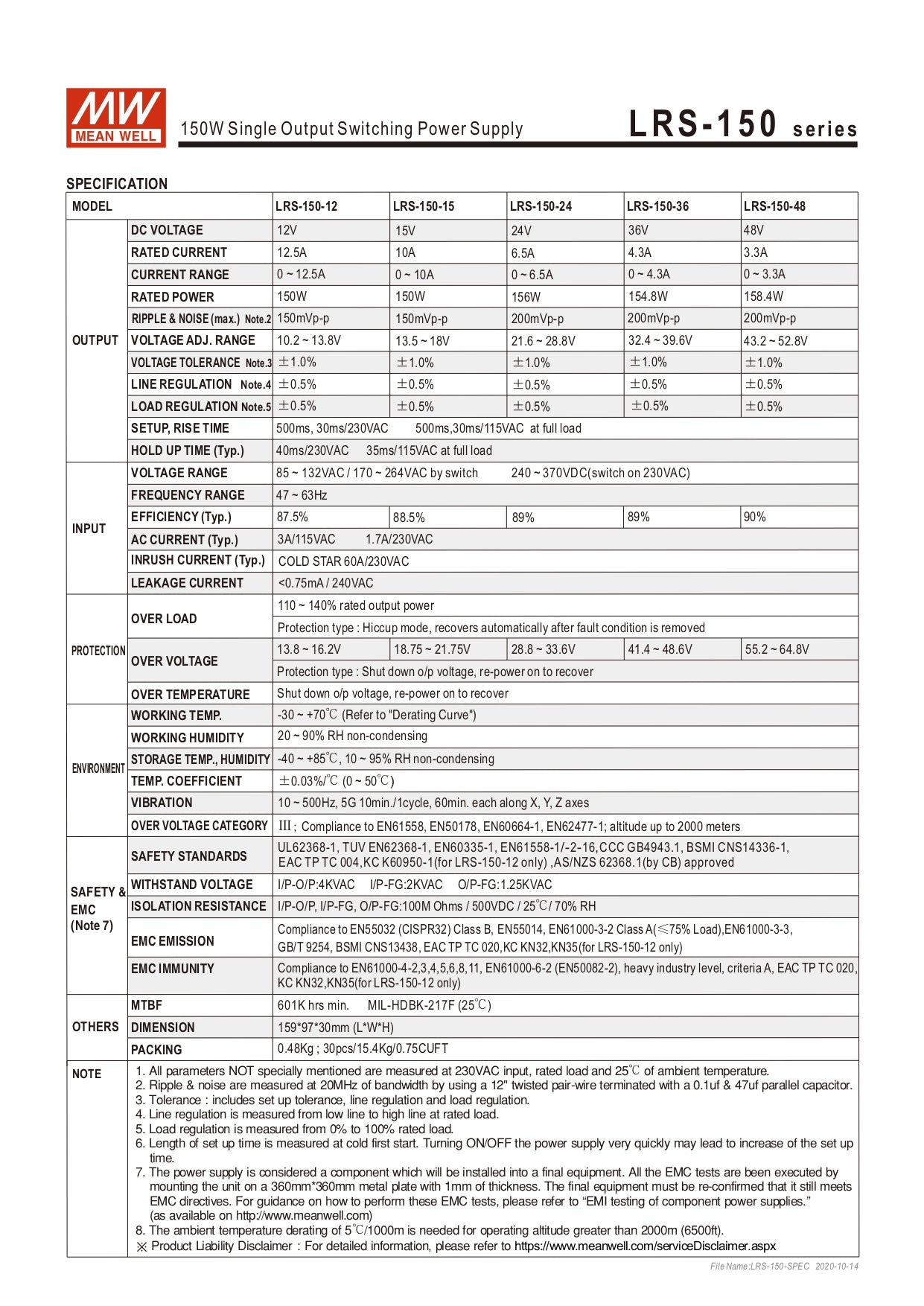

Features/Specs:

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• No load power consumption<0.5W
• Miniature size and 1U low profileHigh operating temperature up to 70?C
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters
• Withstand 5G vibration testHigh efficiency
• long life and high reliability
• LED indicator for power onOver voltage category III
• 100% full load burn-in test
• 3 years warranty
• Output Power: 150 W
• Output Voltage: 12 V
• Output Current: 12.5 A
• Input Voltage: 85 ? 264 V
  Universal Input 110/230V

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package Includes:

• 1 x LRS-150-12 – 12V 12.5A 150W MeanWell SMPS Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
