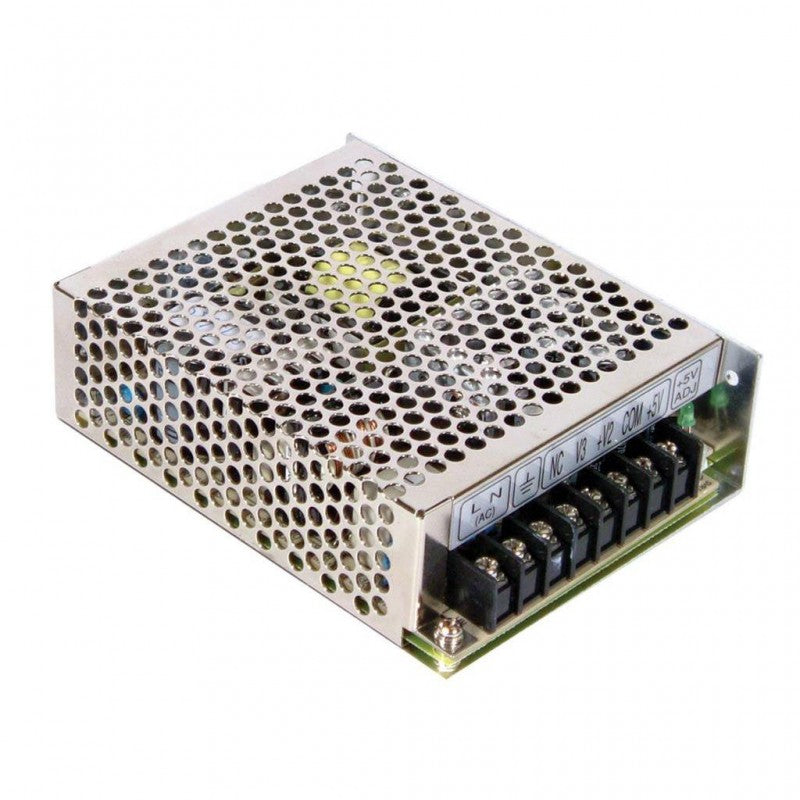

RT-65A Mean Well SMPS (5V 6A), (12V 2.8A) and (-5V 0.5A) 66.1W Triple Output Metal Power Supply - ( SKU:65A )

RT-65A Mean Well SMPS (5V 6A), (12V 2.8A) and (-5V 0.5A) 66.1W Triple Output Metal Power Supply

Specification:

• Output Voltage-Channel 1  =  5 VDC
• Output Voltage-Channel 2 =  12 VDC
• Output Voltage-Channel 3 =  -5 VDC
• Output Current-Channel 1 =  6 A
• Output Current-Channel 2 =  2.8 A
• Output Current-Channel 3 =  0.5 A
• Number of Outputs  =   3 Output
• Output Power = 66.1 W
• Type = Enclosed Type Triple Output
• Features = Standard
• Series = RT (Reliable)
• Mechanical Form = Enclosed

Features :

• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• 100% full load burn-in test
• All using 105°C long life electrolytic capacitor
• Withstand 300VAC surge input for 5 second
• High operating temperature up to 70°C
• Withstand 5G vibration test
• High efficiency, long life and high reliability

Application:

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment, or apparatus.

Package Includes:

• 1 x RT-65A Mean Well SMPS (5V 6A), (12V 2.8A) and (-5V 0.5A) 66.1W Triple Output Metal Power Supply

Note :- Product Images are shown for illustrative purposes only and may differ from the actual product.
